Spiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various Industrial

Brand Name : YIZGEAR

Place of Origin : CHINA

MOQ : 200 Sets

Payment Terms : L/C, T/T

Supply Ability : 500 Sets/Month

Delivery Time : 60 Days

Packaging Details : Plywood Crate

Heat Treatment : Carburizing

Spiral Angle : 20°

Helix Angle : 15°

Manufacture Processing : Gear Grinding

Core Hardness : 220-280 HB

Application : Power Transmission

Profile Type : Gleason

Contact Now

1) Descriptions of Spiral Bevel Gear

Spiral bevel gears are a type of gear used to transfer power between two intersecting shafts.

Their tooth surfaces are in a spiral shape. Compared to straight bevel gears, spiral bevel gears

have smoother meshing and lower noise; due to the large contact area of the tooth surfaces,

their load-bearing capacity is also stronger. This type of gear has high transmission efficiency

and can meet the transmission requirements of different intersection angles of shafts. It is

widely used in mechanical transmissions.

2) Features of Spiral Bevel Gear
a) Automotive field: Compatible with differentials, enabling the left and right wheels to rotate at different speeds.
b) Aerospace field: Meeting the space transmission requirements for lightweight and high reliability of equipment.
c) Industrial machinery field: Applicable to scenarios where heavy equipment requires large torque

and high rotational speed for power transmission.

3) Advantages of Spiral Bevel Gear

a) In automobiles, it ensures the smoothness of vehicle turning and enhances the driving experience.
b) In aerospace equipment, it achieves efficient power transmission with a compact structure, contributing to flight safety.
c) In industrial machinery, it reliably transmits power and ensures the continuous and stable operation of the equipment.

Products Spiral Bevel Gears
Custom Made
Gear Profile Type Gleason
Manufacturing Gear Milling & Gear Teeth Grinding
Teeth Grinding
Module (M) 16
Number of Teeth (Z) 32​
Pressure Angle (α) 20°
Lead Angle 15°
Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC
STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

Production Process

Spiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various IndustrialSpiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various IndustrialSpiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various Industrial

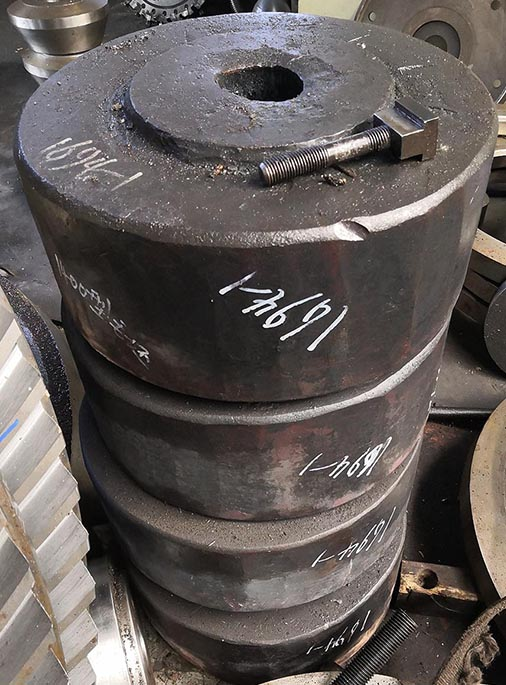

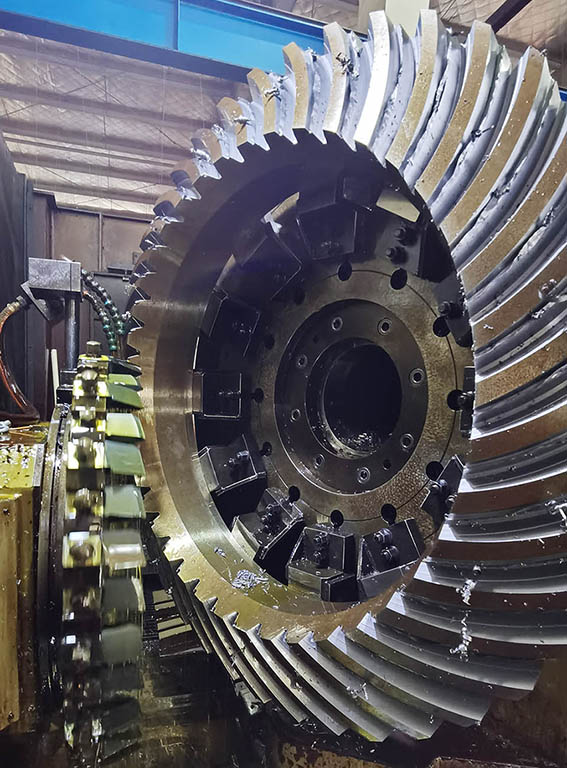

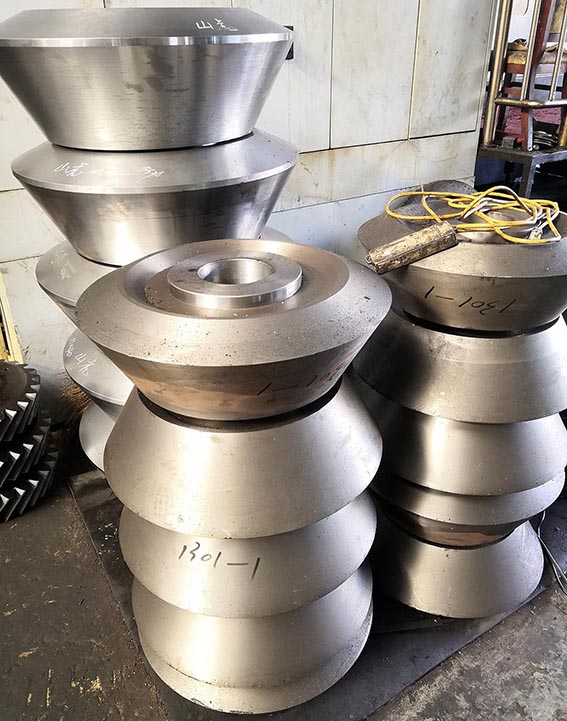

Forging Machining Cutting

Spiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various IndustrialSpiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various IndustrialSpiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various Industrial

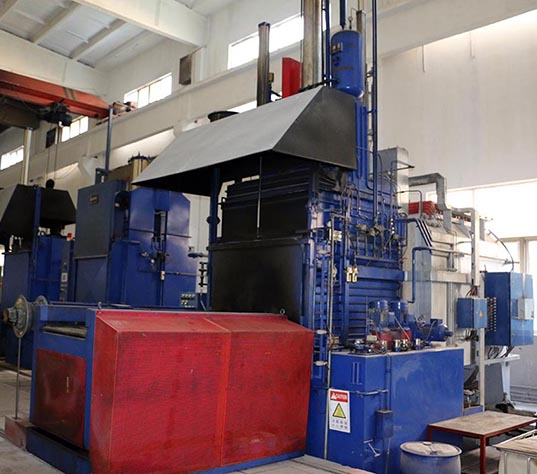

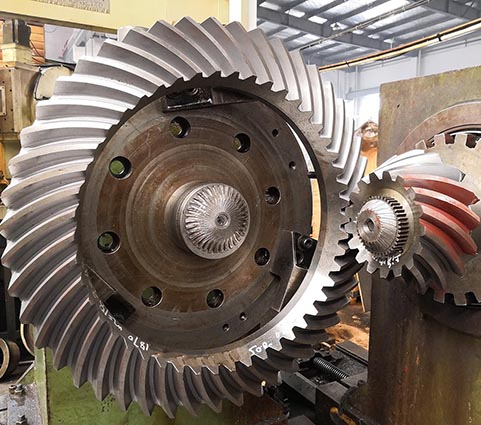

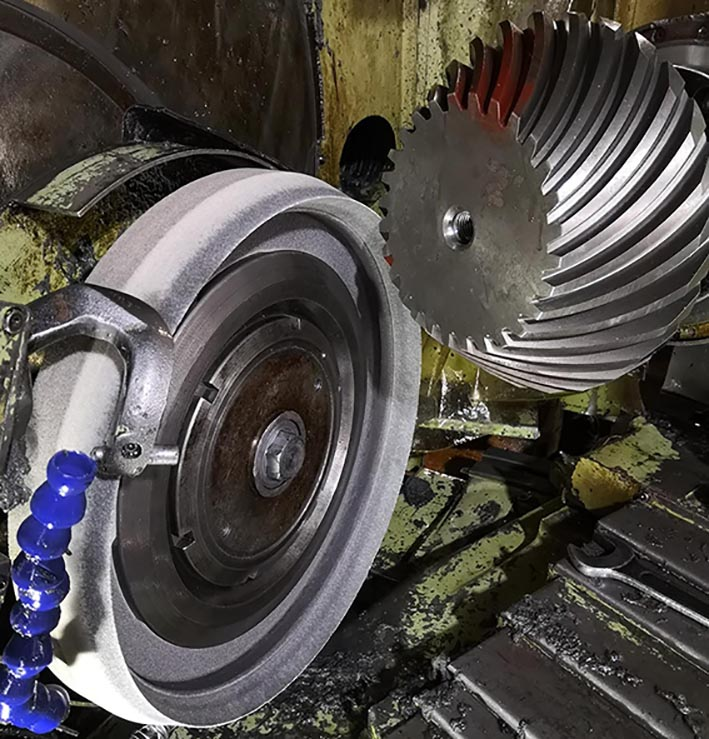

Heat Treatment Grinding Inspection

Spiral Bevel Gears Low Noise High Reliability For Smooth Meshing In Various Industrial
