Alloy Steel Spiral Bevel Gear Teeth Milling Of 22 Module SAE 4320

Brand Name : YIZGEAR

Model Number : SP23102504

Certification : QC

Place of Origin : CHINA

MOQ : 5 Pcs

Price : $300/ Piece

Payment Terms : L/C, T/T

Supply Ability : 500 Sets/Month

Delivery Time : 60 days

Packaging Details : Plywood Crate

Gear Teeth Cutter Diameter : 12"

Unit Weight : 125 Kg

Hardness : 58-62 HRC

Manufacturing Method : Gear Grinding

Gear Type : Gleason

Material : SAE 4320

Contact Now

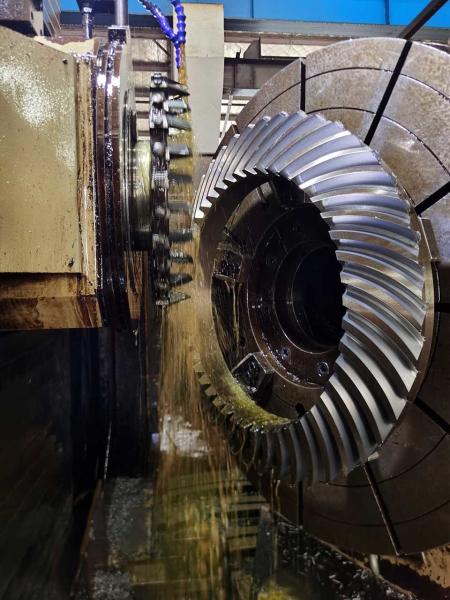

Gear Teeth Milling of 22 Module Alloy Steel Spiral Bevel Gear

Feature of Spiral Bevel Gear

Smooth and Quiet Operation:

The curved tooth profile of spiral bevel gears allows for gradual tooth engagement, resulting in smoother and quieter operation compared to straight bevel gears.

The spiral shape helps minimize noise, vibrations, and shock loads during gear meshing, contributing to improved overall performance and reduced wear.

High Load-Carrying Capacity: Spiral bevel gears are designed to distribute the load evenly across the tooth face.

This feature enhances their load-carrying capacity, allowing them to transmit higher torque and handle heavier loads compared to straight bevel gears.

This makes them suitable for applications that require reliable power transmission under demanding conditions.

Products Spiral Bevel Gear Set
Custom Made √
Material 18CrNiMo7/17CrNiMo6
Gear Teeth manufacturing Gear Milling/Gear Grinding
Diameter Pitch 22
Number of Teeth (Z) 47
Pressure Angle (α) 20°
Helix Angle (β) 35°
Teeth Accuracy Grade AGMA 10-11Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

Alloy Steel Spiral Bevel Gear Teeth Milling Of 22 Module SAE 4320

Alloy Steel Spiral Bevel Gear Teeth Milling Of 22 Module SAE 4320
