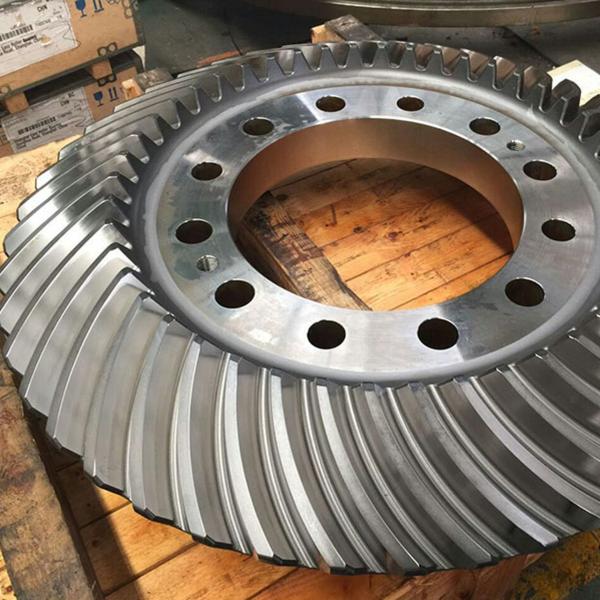

Name: Custom Klingelnberg Type Spiral Bevel Gear Set Gear Grinding Equidep Gear
Brand: YIZGEAR
Price: 300 USD

Brand Name : YIZGEAR

Model Number : SP2207001

Place of Origin : CHINA

MOQ : 1 Set

Price : 300

Payment Terms : T/T, D/P, Western Union, L/C

Supply Ability : 1500

Delivery Time : 45-60 Days

Packaging Details : Plywood Crate

Gear Type : Klingelnberg

Spiral angle : 35°

Heat Treatment : Cement

Direction : Left-Hand

Inner Diameter : 280mm

Width : 65mm

Contact Now

1) Description of Klingelnberg Type Bevel Gear

Unlike Gleason Type bevel gear, the Klingelnberg type gear with constant-depth tooth.

2) Applications of Klingelnberg Type Bevel Gear

Suitable for hevy lod drives, such as ships or trucks.

3) Features of Klingelnberg Type Bevel Gear

Has better efficiency of transmission with reduced noise.

Custom made	√
Gear Profile Type	Gleason
Manufacturing Processing	Gear Milling
Gear Teeth Grinding	√
Module (M)	8
Gear Teeth Number (Z)	35
Pressure Angle (α)	20°
Helix Angle (β)	35°
Working Angle/Shaft Angle	90°
Material	20CrNi2MoA
Heat Treatment	Carburizing/Cement Quenching
Surface Hardness	58-62 HRC

STEEL CODE GRADES COMPARISON
CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/ 40XHMA	4340	SNCM439	40NiCrMo6/ 36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420
