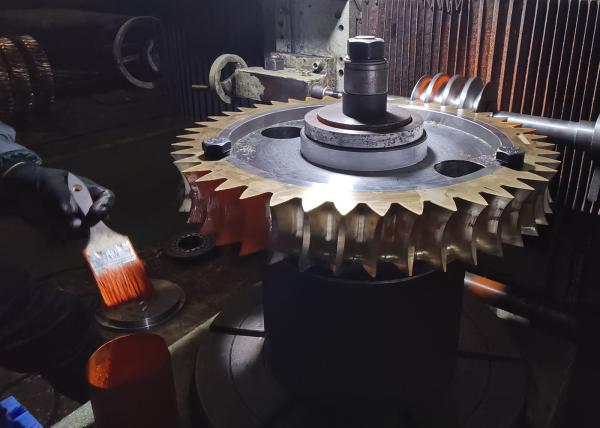

ZCuAl10Fe3 Right Hand Worm Gear Wheel 10 Module ZI Type 45 Teeth

Brand Name : YIZGEAR

Model Number : WG22080904

Place of Origin : CHINA

MOQ : 1 Set

Price : $350/Set

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 600 Sets/Month

Delivery Time : 58 Days

Packaging Details : Plywood Crate

Material : Aluminium Bronze

Profile Type : Gear Hobbing

Outer Diameter : 493

Weight : 55Kg

Face width : 64mm

Module : 10

Contact Now

10 Module ZI Type 45 Teeth ZCuAl10Fe3 Righ Hand Worm Gear Wheel

1) Description of Worm Gear and Worm Shaft

A worm drive is a gear arrangement in which a worm (which is a gear in the form of a screw) meshes with

a worm wheel (which is similar in appearance to a spur gear). The two elements are also called the worm

screw and worm gear. The terminology is often confused by imprecise use of the term worm gear to refer

to the worm, the worm wheel, or the worm drive as a unit.

2) Types of worm gear and worm Shaft

  • The first are non-throated worm drives.
  • Single-throated worm drives.
  • Double-throated worm drives.
Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Milling & Gear Teeth Grinding
Teeth Grinding Included
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) Custom
Lead Angle Custom
Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing/Cement Quenching
Surface Hardness 58-62HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment
